Transmission 722.6 / Hydraulic System

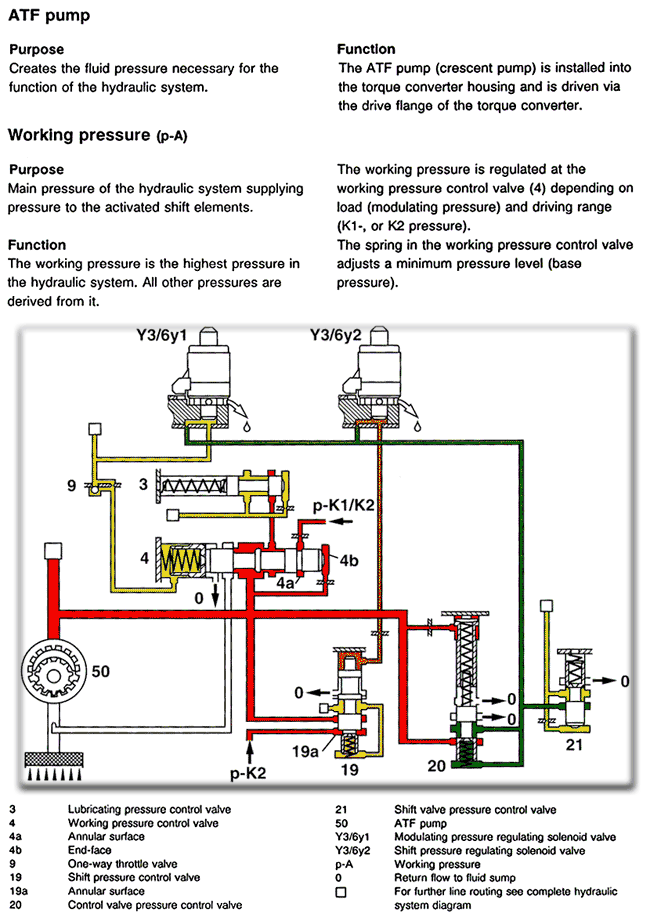

Hydraulic System

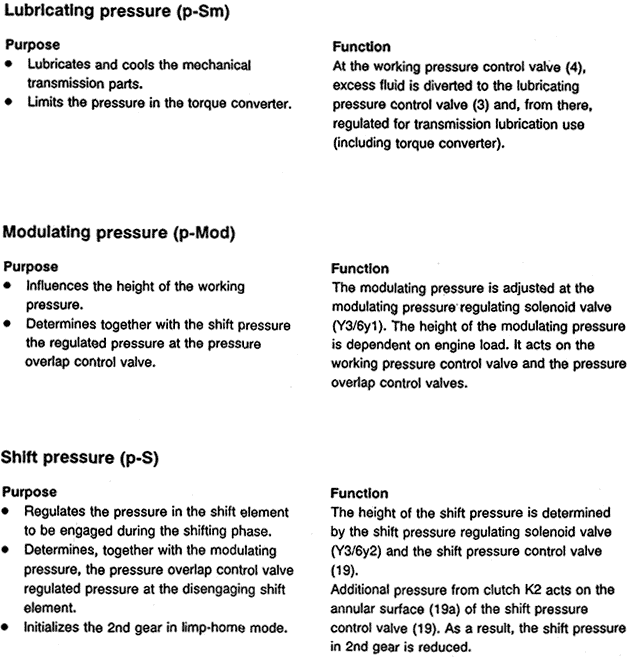

    - Valve Pressures
    - Torque Converter
    - Shift Groups
    - ATF Pump and Gear Change

- Command Valve
- Shift Process
- Engagement Process
